10 Best
Jig For Door Hinges
-
Product Highlights- 【aluminum alloy material】 high-quality aluminum alloy one-piece molding, strong and durable, can be used as a woodworking door hinge template kit for router long-term use
- 【multiple use function】 can be used as door hinge template hinge slotting and can also be used for lock body guide slots and other slotting applications and designs, newcomers need to adapt to the tool to gain experience after more convenience and fast.
- 【sllotting range】 maximum clamping 2.4 inches door panel slotting, maximum opening 7.1 inches, hole puncher comes with a scale length and width positioning support four-way flexible adjustment, powerful door hinge installation kit
- 【convenient and quick adjustment】with butterfly screws for quick adjustment of slotting size, the clamping part is designed with rubber anti-slip to ensure that the surface of the wooden door is not damaged. it is the choice of professional woodworkers.
- 【hint】router jig needs to be used with a trimming machine. after the slotting is completed, you need to pay attention to the milling knife touching the hinge jig, which comes with a 12mm chisel, right angle hinge needs to be trimmed to a right angle before installation
SHOWview product -
Product Highlights
- Durable: this cabinet hardware hinge jig is made of high-quality aluminum alloy, which is strong and durable, with sharp drill bits and long service life.
- Ideal choice: the hinge hole opener locator can not only help you drill cabinet/kitchen/wardrobe/cabinet doors easily, it is also a great tool for furniture factories and woodworking enthusiasts.
- Convenience: you can easily use the 35mm concealed door hinge jig for positioning and drilling, and the hinge offset distance of 3-6mm can meet your different drilling needs. precise positioning and drilling allow your installation work to be completed faster.
- Application: our hinge jig drilling hole puncher is widely used for hinge drilling and installation, the distance from the 35mm hole to the edge is 5mm, suitable for most common hinges.
- Service: instruction manual is included, if you have any questions about the product, please feel free to contact us.
SHOWview product -
Product Highlights
- Multiple functions: the hinge clamp is designed for the installation of hinge grooves and lock clamps to meet different usage requirements. the dual use design allow you to choose according to your specific needs without additional equipment. bring a more efficient and convenient slot positioning experience
- Strong and durable: the whole door hinge fixture is made of high strength material, and the main panel is made of aluminum alloy, which is wear resistant, rust proof and stable in structure to ensure excellent durability, which can withstand a variety of environmental conditions, including bad weather, high temperature and humidity, and is not easy to deform or damaged ...
- Easy to use: the concealed hinge clamp is easy to operate without any tools. manually tighten the screws for quick clamping. the clamping part adopt rubber non slip design to prevent damage to the of the wooden door. just follow the instructions and you can complete the installation in a few minutes
- Unique design: the hinged drilling plate is equipped with stainless steel thread sleeve in the screw hole, which can effectively protect the female thread of the fixture and extend the service life
- Accurate slotting: this desktop hinge fixture kit support flexible adjustment in all four directions, with adjustable length and width positioning for accurate alignment. a built in ruler provide specific slotting positions for accurate and fast hinge slotting and lock plate installation
SHOWview product -
Product Highlights
- The drill guide with metal bushing locks into jig and creates a perfectly straight hinge cup hole
- Easily set your cup hole depth on the included 35mm drill bit using the built-in depth setting fixtures on the left and right side.
- Two edge alignment knobs position the cup hole from the edge of the door, while the edge pin sets the distance from the top/bottom.
- Guide bushings built into body of jig let you pre-drill pilot holes in 4 common locations, making sure hinges are straight and door closes true. the 1/16" diameter drill bit for pilot holes is included.
- The hinge marking guide detaches from bottom of jig and allows you to transfer and mark center lines and hinge location to cabinet wall or frame
SHOWview product -
Product Highlights
- 【versatile cabinet hardware jig】35mm hinge jig provides a 3-6mm hinge offset,help you adjust the spacing between hinge holes and door edges,fits for most kinds of concealed hinges,european hinges.shelf pin drilling guide provide 37/50/64mm offset helps to install different handles and pins.drilling precise holes for hinges is a breeze with this jig
- 【easy to operate】step 1: take out the red base, install the 35mm drill bit into the red base. step 2:insert the black stop collar into the drill bit guide, adjust the position of the ring according to the hole depth needs, and use a wrench to lock the position. step 3: install the drill bit and the red base into the black dial.step 4: connect with the drill, and press d...
- 【premium quality】this hinge and shelf pin drilling guide is made of high-quality aluminum alloy,anodized for durability and excellent oxidation resistance.cnc machining ensures the accuracy of the jig, laser engraved scales, clear and wear-resistant.the 35mm carbide drill bit is strong and sharp for cabinet door hinges installation. concealed cabinet hinge jig help you ...
- 【efficient drilling】this cabinet door hinge jig provides stable and accurate drilling performance, equipped with a sharp 35mm drill bit and two 5mm drill bit,7holes with a standards spacing of 32mm,easy to drill 7pcs accurate straight holes quickly.this hinge jig enables integrated drilling of hinge hole and door handle or shelf pin hole,working faster and saving time. ...
- 【widely used】the hinge and shelf pin drilling guide is widely used for hinge opening installation, door hinge drilling position, straight holes shelf pin drilling, and woodworking hole puncher locator. the spacing between the 35mm hole and the edge is 5mm, suitable for most common hinges. you can easily install many cabinet doors.
SHOWview product -

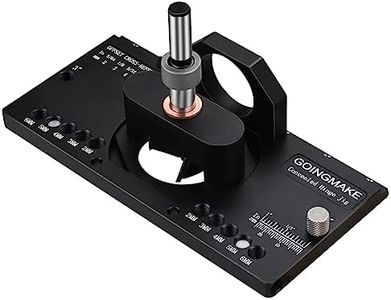

Product Highlights
- Work without dust and clean workshop: the world first metal dust vaccum adapter built-in the base is durable and better than plastic adapter. suitable for 1-3/8 inch vaccum hose and you can just connect your vaccum with the concealed hinge jig. the world's latest dust vacuum adapter makes cabinet hinges drilling without any dust for woodworking. greatly improves the eff...
- Versatile cabinet hardware jig: the concealed door hinge jig can work with 2mm, 3mm, 4mm, 5mm and 6mm hinge offsets for most concealed hinges. have no difficulty on any concealed hinges installation with 35mm hinge hole drilling jig. our 5/64 inch drill guides provides 4 kinds of hinge screw holes spacing including 42x11mm, 48x6mm, 52x5.5mm, 45x9.5mm for most hidden cab...
- Durable, accurate and professional: all metal cabinet hinge jig made of high quality aluminum alloy is more durable and accurate than plastic jigs. the all metal concealed hinge jig bulit-in double bearings provides continuous hinge hole drilling and much easier. the 35mm carbide tipped bit is solid and sharp for cabinet door hinges installation. concealed cabinet hinge...
- Easy to adjust and use hinge hole drilling jig: quick cabinet hinge hole depth setting design is much easier than other brand jigs to set up the drill bit depth without any measuring. the 35mm concealed hinge jig provides drill depth from 0-0.6 inch. perfect for 1/2 inch overlay hinges or any others.
- What you will receive: 1pcs concealed hinge jig, 1pcs 35mm hinge drill bit, 1pcs 5/64 inch drill bit, 1pcs 35mm drill guide, 1pcs 5/64 inch drill guide and 1pcs drill stop collars, 1pcs wrench. we offer professional customer service and will respond promptly to any questions or concerns you may have!
SHOWview product -
Product Highlights
- Dimensions: approx. s: 47.5x22mm/1.8x0.8in, l: 56x2 8mm/2.2x1.1in
- Can be used for glass hinges on cabinet doors, wine cabinets, etc.
- The brushed hinge can be slowly closed for smooth, quiet motion.
- Made of high quality alloy material that is durable, rust and lasts a long time.
- Shower glass door hinge: made of high-quality stainless steel, sturdy and durable. bringing a refreshing atmosphere to the bathroom, beautiful and practical.
SHOWview product -
Product Highlights
- [precise positioning] this door hinge template jig has precise scale, easy to adjust and improve work efficiency. it has a length and width positioning adjustment design, flexible to adjust.
- [sturdy material] adopting aluminum alloy material, this tool is very sturdy and rust-proof. it is lightweight and suitable for slotting the opening and closing fan blades, as well as slotting the guide plate of the lock body.
- [protect door] using rubber non-slip design, it will damage the door surface. the thread sleeve effectively protects the internal thread of the fixture.
- [after-sales] if you have any questions, please get in touch with us, our service team will provide you with a professional and satisfactory service.
- [safe clamping] you can use the attached mini adjustment wrench for fast and safe clamping. it is a good helper for any professional woodworkers.
SHOWview product -
Product Highlights
- 【determine hinge shape easily】 step 1: identify the hinge shape. use the corner guides for hinges with around a 5/8" radius on their corners. (square-cornered hinges don't require corner guides.)step 2: securely fasten the hinge mortiser to the door using clamps.step 3: eliminate the length guide and adjust it to the desired length.step 4: mark the edges you've establis...
- 【install the door hinge】step 1: drill the screw holes for the hinge by using the self-centering hinge bit .step 2: install the door hinge to the door by using the double-ended driver bit, inserted into a drill.
- 【intergrated door hinge mortiser】quickly install all standard door hinges. cut mortises in the doors of hinges from 3" to 5" in length and 1/4" and 5/8" in thickness. meet all your needs in both hinge length, height, and round vs. square corners.
- 【cut hinge shape use a router】 say goodbye to the hassle of hammers and chisels.step 1: take out the router bit and install on the router.step 2: set the depth by putting it on the router bit depth gauge to and lock it in place.step 3: power on the router and cut out the hinge shape from the template area.step 4: release the door hinge template.
- 【package included】1 door hinge mortiser, 1 user manual and 3 included bits – 1x router bit, 1x self centering hinge bit, 1x ph2/8-10sl double ended screwdriver bit.
SHOWview product -
Product Highlights
- Sturdy steel frame adjusts from 1-3/8" to 1-3/4" doors and jambs
- Includes 1/2" router bit with bearing, spring-loaded corner chisel and self-centering hinge bit
- Templates for 2-1/2", 3", 3-1/2", 4" and 4-1/2" hinges; 1-1/8 x 2-3/4, 1-1/2 x 2-1/4 strike plates; 1" x 2-1/4", 1-1/8" x 2-1/4", and 1-1/8" x 2-3/4" latch plates
- Centered tabs on each template ensure complete accuracy
- Easy measure guide is included to simplify standard industry placement of your door hardware
SHOWview product
